01
Concrete, Cement, and Aggregates
Compression testing on cube and cylinder specimens (2,000 kN and 3,000 kN capacity machines). Flexural testing. Split tensile. Core extraction and…
Services
Civil and Infrastructure Testing
The civil and infrastructure pillar exists as a separate top-level capability because the buyer is a different decision-maker. A real-estate developer, an EPC contractor bidding for a metro or expressway, a Public Works Department officer ordering a structural audit, or a municipal infrastructure requesting building inspection.
Request a QuoteOverview
TCR tests concrete, cement, aggregates, soil and bitumen, conducts structural audits under Maharashtra Clause 77, and has inspected 500+ bridges, with CIDCO and BMC registration. Governing standards across the pillar include IS 13311, IS 4031, IS 516, IS 1199, IS 2386, IS 383
Overview
The catalogue covers concrete and cement, aggregates, soil, bitumen and road, structural audits under Maharashtra Clause 77, bridge inspection, rebar and reinforcement coupler testing, HT strand for High Speed Rail, ground-penetrating radar and ultrasonic pulse velocity, half-cell potential, building materials, AAC blocks, tiles, aluminium formwork, manhole and gully top fatigue, grain silo certification, and the structural stability and plumbness work that supports industrial structures.
TCR Engineering in India is NABL ISO 17025 accredited and provides superior end-to-end solutions for civil testing across all the elements of building structures and has an extensive Road Inspections programme as per requirements of IRC.
TCR is trusted by contractors, construction companies, and infrastructure developers for delivering accurate and reliable testing services across various sector ranging from residential, commercial, and industrial infrastructure.
Capabilities and governing standards
Each linked page carries full method detail, scope and acceptance criteria.
| Service | Governing standards |
|---|---|
| Concrete, Cement, and Aggregates | IS 13311, IS 4031, IS 516, IS 1199, IS 2386, IS 383, IS 8112 |
| Soil and Geotechnical | IS 2720, IS 4332, ASTM D1883, ASTM D698, ASTM D4318 |
| Bitumen and Road Materials | IS 1206 |
| Road Inspection and Pavement Evaluation | See service page |
| Structural Audit Under Maharashtra Clause 77 | IS 13311, ASTM C876 |
| Bridge Inspection | IS 13311, ASTM C876Corrosion, IS 14268, ASTM A416, ISO 10138, ISO 15630-3 |
| TMT Rebars and Reinforcement Couplers (BIS-Accredited) | IS 16172, IS 2770, IS 14268, IS 1786, IS 16651, IS 2062, IS 513 |
| Building Materials, Tiles, AAC Blocks, Aluminium Formwork | ASTM C177, IS 16231, IS 2645, ASTM E228, IS 1077, IS 15622, IS 456 |
| GPR, UPV, and Subsurface Mapping | IS 13311 |
The services of this pillar
02
Soil and Geotechnical
Triaxial, direct shear, California Bearing Ratio (CBR), Standard Proctor and Modified Proctor compaction, Atterberg limits, sieve analysis and…
03
Bitumen and Road Materials
Bitumen and bituminous-mix testing is delivered through a qualified partner laboratory under TCR Engineering's coordination, sampling oversight, and…
04
Road Inspection and Pavement Evaluation
Pavement Condition Index. Non-destructive roughness measurement. Deflection measurement (Benkelman Beam and Falling Weight Deflectometer-compatible…
05
Structural Audit Under Maharashtra Clause 77
The Maharashtra Clause 77 mandate covers structural audit of buildings older than 30 years (and recommended for buildings older than 15 years) in…
06
Bridge Inspection
500+ bridges inspected across…
07
TMT Rebars and Reinforcement Couplers (BIS-Accredited)
The civil-buyer-facing capability anchor is the first BIS-accredited commercial laboratory in India for IS 16172 rebar coupler testing across all…
08
Building Materials, Tiles, AAC Blocks, Aluminium Formwork
09
GPR, UPV, and Subsurface Mapping
Ground-Penetrating Radar (GPR) for rebar location, embedded-utility mapping, and pavement layer-thickness profiling. Ultrasonic Pulse Velocity (UPV)…
|
New Construction Civil Testing Cement Chemical Test as per IS 269: 2015, IS 1489-1: 2015 and IS 4032:1985
Physical Testing as per IS 4031
Inspection at Site as per IS 269: 2015, IS 1489-1: 2015 and IS 4031(Part 1):1996
Ground Granulated Blast Furnace Slag (GGBS) Chemical Testing as per IS 16714: 2018 and IS 4032
Physical Testing as per IS 16714:2018, IS 4031 (part 2)
Inspection at Site as per IS 16714:2018
Micro Silica Chemical Testing as per IS 15388: 2003, IS 1727, IS 4032
Physical Testing as per IS 15388: 2003 and IS 1727
Inspection at Site as per IS 15388: 2003
Flyash Chemical Testing as per IS 3812 - P1 (2013), IS 1727
Physical Testing as per IS 1727
Inspection at Site as per IS 3812:2013 and IS 4031/4032
Admixture Physical and Chemical Test as per IS 9103: 1999
Field Test as per IS 9103: 1999
Water Chemical Testing as per IS 456:2000 and IS 3025
Field Test as per IS 456:2000
Readymix (RM) Plaster Field Test as per BS 998 and EN 1015
Fine Aggregate Chemical Testing as per IS 383: 2016 and IS 2386
Physical Testing as per IS 383: 2016 and IS 2386
Field Test as per IS 383: 2016 and IS 2386
Coarse Aggregate Chemical Testing as per IS 383: 2016 and IS 2386
Physical Testing as per IS 383: 2016 and IS 2386
Field Test as per IS 383: 2016 and IS 2386

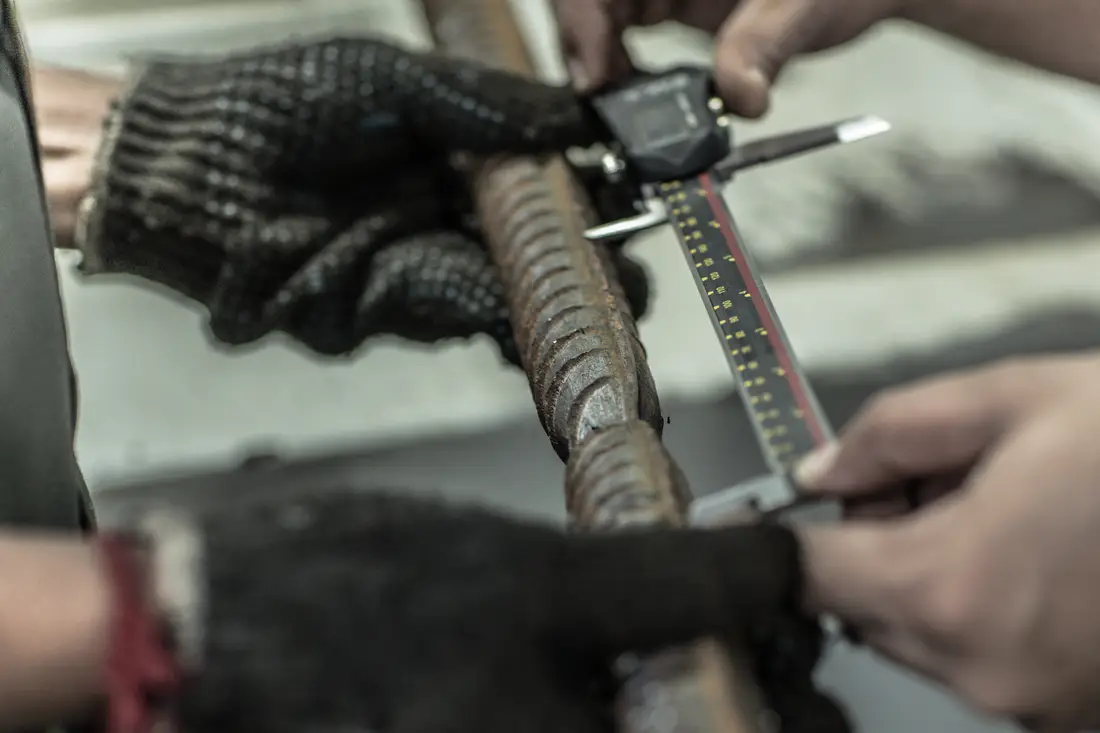

Reinforcement Physical and Chemical Testing per IS 1786: 2008
Field Test as per IS 1786: 2008
Coupler Chemical Testing all elements as per ASTM E415 Physical Testing as per IS 16172
Autoclaved Aerated Concrete (AAC) Blocks Physical Testing per IS 2185, IS 6441 and IS 3346
Field Test of dimensional tolerance as per IS 2185 Gypsum Plaster Chemical Testing as per IS 1288 and IS 2547
Physical Testing as per IS 2547 and IS 2542
Field Test as per IS 2542
Bricks (Clay and Flyash) Physical Testing as per IS 1077, IS 12894, IS 3495 and IS 4139
Field Test as per IS 1077, IS 12894, IS 3495 and IS 4139
Concrete Concrete Mix Design Test as per IS 10262, EN 12390, IS 16700, ASTM C1202, DIN 1048, IS 3085, BS 1881
Fresh Concrete Test as per IS 1199
Field Test of Compressive Strength as per IS 1199 and IS 516 |
Building Finishing Works Testing Tiles Physical Testing as per IS 15622: 2017 and IS 13630
Chemical Testing as per IS 15622: 2017
Granite Physical Testing as per IS 14223, IS 1124, IS 13630, IS 1706 and ISO 10545
Marble Physical Testing per IS 1124, Mohs Scale and IS 1122
Wooden Flooring Physical Testing as per Manufacturer Spec
Precast Concrete Pipes Physical Testing as per IS 3597
Fiber Cement Board Physical Testing as per IS 14862
Wooden Door Frame Physical Testing as per IS 287: 1993, IS 11215: 1991 and Moisture Meter
Laminated Veneer Lumber (LVL Door Frame) Physical Testing as per IS 14616, IS 1734, IS 1708, IS 2380
Door Panels Physical Testing as per IS 4020
Aluminium Sections Chemical Testing as per BS 573
Physical Testing per BS 573, IS 13871 and IS 101
Glass Toughened glass Physical Test as per IS 2553 and IS 17004
Laminated glass Physical Test - IS 2553, IS 17004
Float glass Physical Test as per IS 14900
|
Grain Silo and Industrial Civil Infrastructure
Grain silo certification: 10,000 MT capacity per EN 10346 S350GD coated steel sheet, with ATEX/PESO certification framework where the silo carries explosive-dust scope. The capability extends to industrial civil infrastructure: pipe-rack foundations, equipment plinths, machine foundations, and chimney structural assessment.
Theodolite-Based Plumbness and Straightness
Theodolite-based plumbness and straightness measurement for industrial chimneys, stacks, towers, and tall building cores. Output is a verticality deviation report against IS 4998 Part 1, IS 11960, and IS 875 Part 3 wind-load implications.
Marquee Engagements
Named civil and structural engagements include NDT at Antilia and the Wankhede Stadium in Mumbai, the structural audit of the STT Global Data Centre built by Larsen and Toubro, structural audits at Vikas Complex in Thane West, KC College in Thane, and Essential Power Transmission in Andheri (Mumbai), structural analysis for the Synergia Life Sciences factory at Wada, and the structural assessment for Petro India at Sanganer, Jaipur.
| Client / Project | Service Anchor | Year |
|---|---|---|
| Mumbai-Ahmedabad High Speed Rail (NHSRCL Packages C1, C2, C3) | Construction-stage civil testing under MEIL-HCC, Afcons, Larsen and Toubro; HT strand; rebar coupler; concrete; soil; HSR-spec materials | NHSRCL VMAC Meeting No. 13, October 2023 onward |
| 500+ Bridges, Maharashtra PWD | Robotic NDT, structural audit, rehabilitation recommendation | Continuous |
| BMC March 2026 robotic underwater bridge programme | 400+ bridges, AI-assisted underwater inspection | March 2026 onward |
| Statue of Unity, Larsen and Toubro | Mechanical, chemical, metallurgical, NDT through construction | Construction era |
| Statue of Oneness, Adi Shankaracharya | Conventional NDT for structural fabrication | Multiple |
| L&T Mumbai Metro | Rebar coupler, concrete, soil, structural NDT | Multiple |
| Mumbai Coastal Road Project | Rebar coupler, concrete, structural NDT | Multiple |
| Antilia | NDT through construction | Construction era |
| Wankhede Stadium | NDT through redevelopment | Multiple |
| Godrej Properties (3-year LRC, all Mumbai Zone) | Long-Term Rate Contract for property-development testing | April 2026 onward |
| Kalpataru, Shapoorji Pallonji, Rustomjee | Long-Term Rate Contracts | Continuous |
| CIDCO eMTL Maharashtra | Empanelled Material Testing Lab | Continuous |
| Larsen and Toubro Statue of Unity year-long onsite engagement | Continuous on-site materials and NDT | Construction era (Appreciation Letters) |
Mumbai-Ahmedabad High Speed Rail (NHSRCL), approved under VMAC No. 13 dated 23 October 2023 and engaged across all three civil packages since March 2024: MEIL-HCC (C1), Afcons (C2), and Larsen and Toubro (C3). Kal[ataru and Godrej Properties, long-term rate contract for civil testing across the Mumbai zone (April 2026).
The Logistics Differentiator: Free TCR-Branded Sample Pickup Van
TCR runs a free TCR-branded Sample Pickup Van for the Mumbai Metropolitan Region, lifting samples from client premises to the Mahape laboratory at no charge.
Standards Coverage Matrix (Civil and Infrastructure)
Concrete and Cement: IS 516, IS 1199, IS 2386, IS 383, IS 4031, IS 8112, IS 12269, IS 456. ASTM C39, C496, C617, C1383. EN 12390 series.
Soil and Geotechnical: IS 2720 series, IS 4332. ASTM D1883, D698, D4318. AASHTO T89, T180.
Bitumen and Road: IS 73, IS 1206. IRC SP 53, IRC 37. MoRTH Specifications for Road and Bridge Works.
Structural Steel: AISC 360 (specification for structural steel buildings).
Rebar and Couplers: IS 1786, IS 16172, IS 2770, IS 14268, IS 3757. ASTM A615, A706, A1064, A416. ACI 318.
NDT for Concrete: IS 13311 Part 1 (UPV), IS 13311 Part 2 (rebound hammer). ASTM C876 (half-cell potential). Cover depth of rebar in concrete.
Building Materials: IS 2185 Part 3 (AAC blocks), IS 1542 (cement render), IS 2645 (waterproofing admixtures), IS 15477 (tile adhesive), ISO 8302, ASTM C177 (thermal conductivity, Guarded Hot Plate), IS 9498, ASTM E228 (linear thermal expansion).
Bridge: IRC SP 35, IRC SP 18, IRC SP 40. BS 5400. AASHTO LRFD Bridge Design Specifications.
Industrial Civil Infrastructure: IS 4998 Part 1 (chimney design), IS 11960 (industrial steel chimneys), IS 875 Part 3 (wind loads). EN 10346 S350GD (coated steel sheet for grain silos).
Related insights
36 published insights on this site carry the Civil & Structural Testing tag. The 6 most recent are below.
Bipolar Corrosion Inhibiting Admixture Testing in India
How bipolar corrosion inhibiting admixtures protect rebar, and the ASTM G109, RDSO M&C/PCN/126 and IS 9103 tests that prove it.

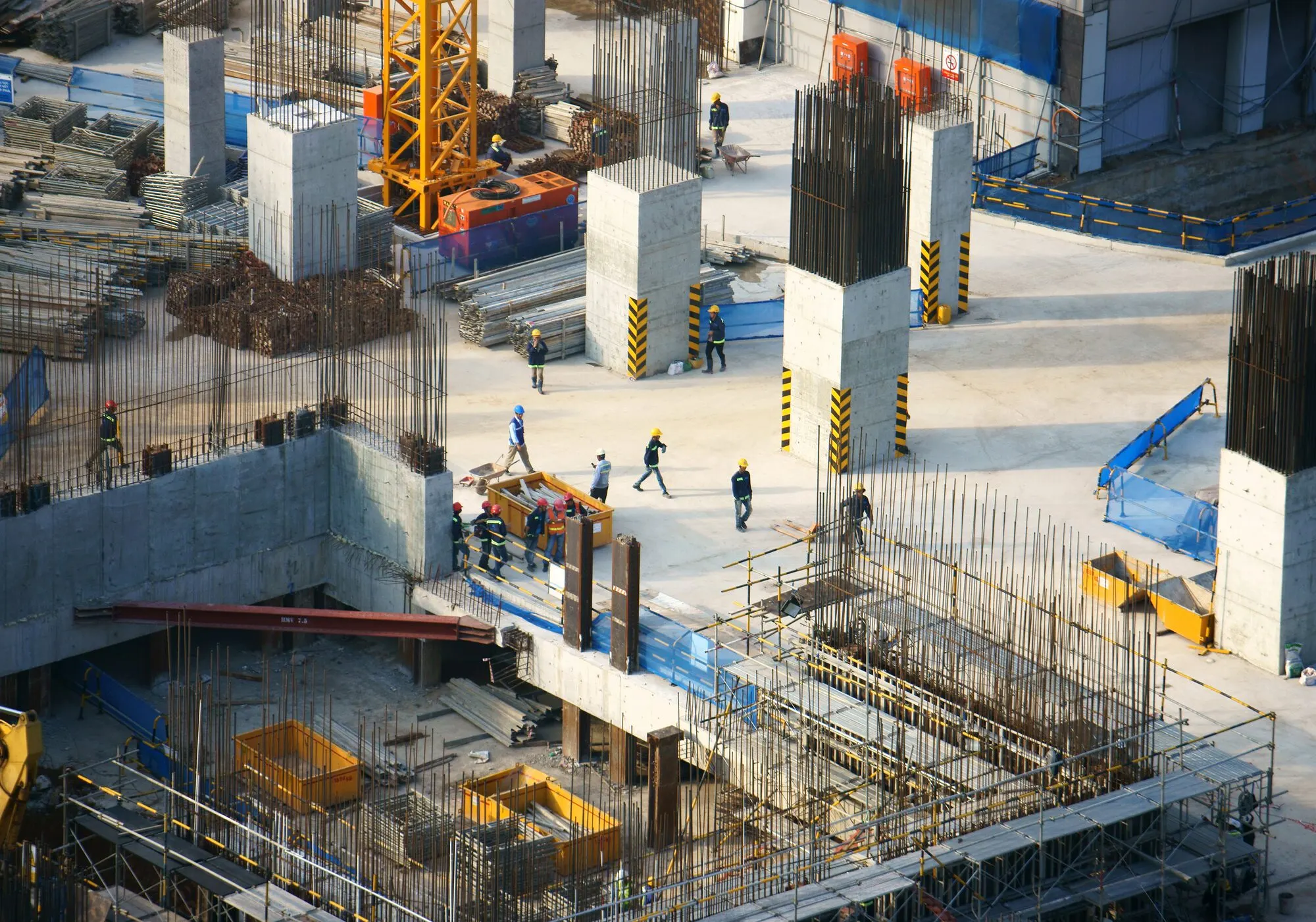

Third Party Testing of Construction Materials: Your Complete Quality Assurance Partner in India
TCR Engineering's third party testing ensures construction material quality through IS-compliant concrete, aggregate, and admixture testing.
EN 124-5 Testing for Manhole & Gully Tops
TCR Engineering in Navi Mumbai conducts EN 124-5 tests including load, deflection, tilt, fatigue (1L cycles), and permanent set for manhole covers.
From Lab Data to Building Performance: ASTM D412 Testing That Predicts Membrane Durability
Coating and membrane testing per ASTM D412 and AS/NZS 4548.5 reveals tensile strength and crack bridging. TCR validates waterproofing performance.

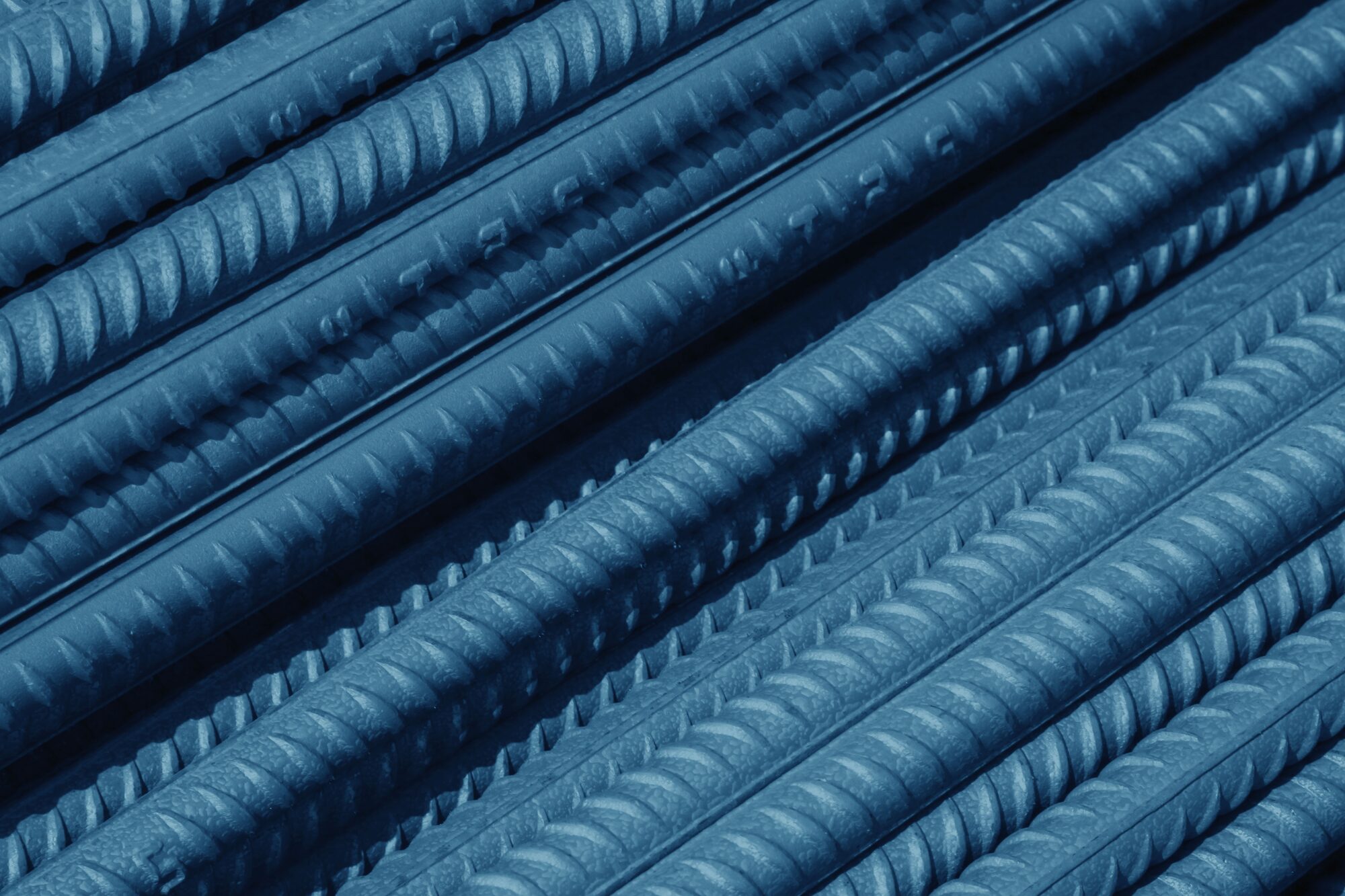

Pull-Out Test on TMT Bars: Understanding Bond Strength That Actually Holds Your Structure Together
TCR Engineering's pull-out test on TMT bars evaluates bond strength for Fe 550D reinforcement from 8mm to 32mm diameter following IS 2770.

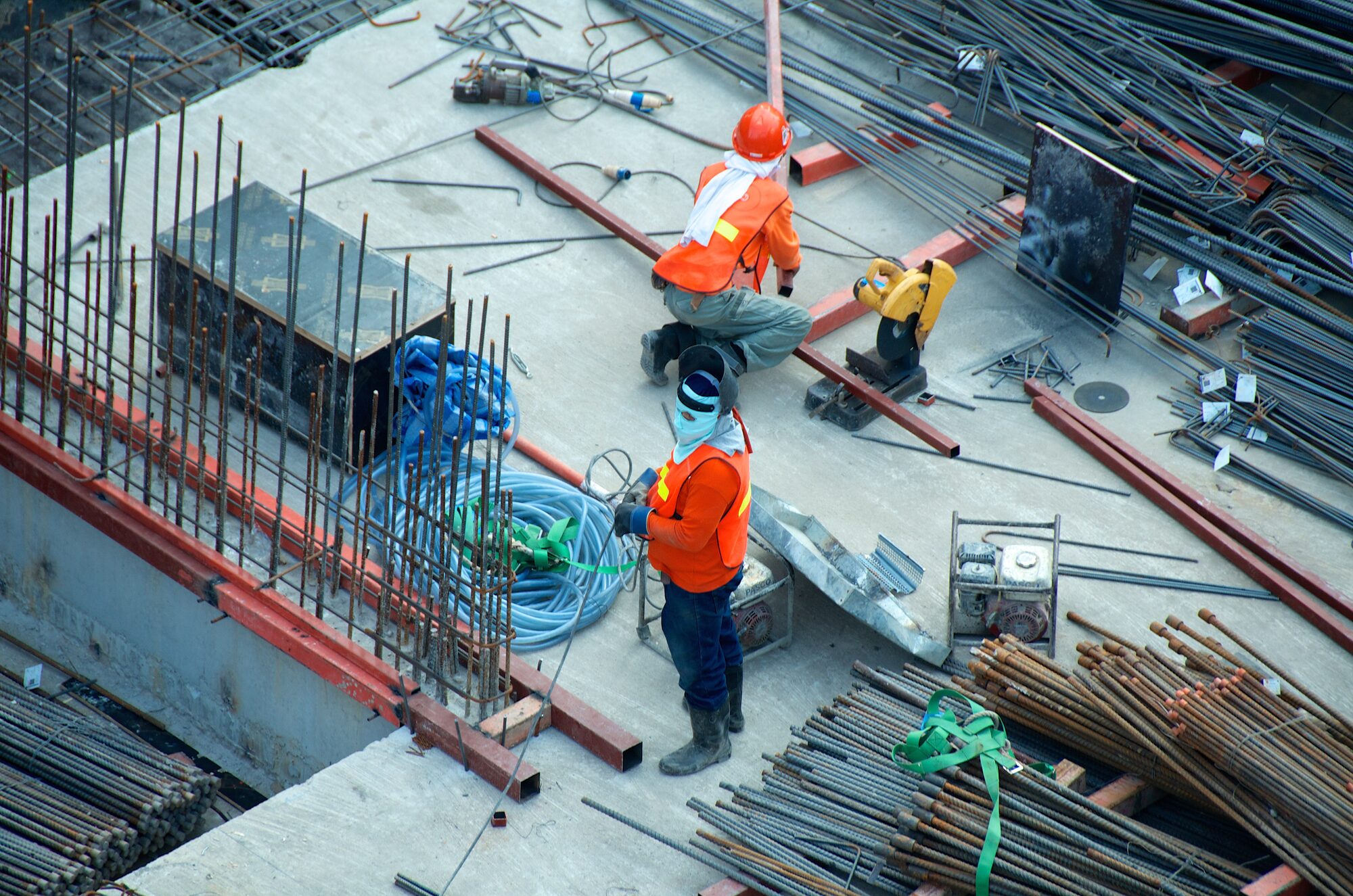

TCR Engineering Wins Long Term Rate Contract from Godrej Properties for Third Party Civil Testing Across Mumbai Zone
TCR Engineering wins 3-year civil testing rate contract from Godrej Properties for all Mumbai Zone residential projects.
Read all 36 Civil & Structural Testing insights →All insights →
Frequently asked questions
Is TCR NABL accredited for civil and construction material testing?
Yes. Civil testing runs under TCR Engineering's NABL ISO/IEC 17025:2017 accreditation (NABLT0726MH18640) at the Mahape laboratory in Navi Mumbai, covering concrete, cement, aggregates, soil, building materials and site NDT for concrete, with bitumen testing delivered through a qualified partner laboratory under TCR's coordination.
Can TCR carry out a structural audit under Maharashtra Clause 77?
Yes. Structural audit under Maharashtra Clause 77 is a dedicated service, mandated for buildings older than 30 years and recommended for buildings older than 15 years. TCR has completed 1,200+ structural audits across India, including Vikas Complex in Thane West, KC College in Thane and the STT Global Data Centre.
Is TCR registered with BMC and CIDCO?
Yes. TCR holds BMC Roads Department registration ChE/Rds/8292/NF dated 25 March 2026 and is CIDCO eMTL empanelled. The BMC robotic underwater bridge inspection programme, started March 2026, covers 400+ bridges with AI-assisted inspection, alongside TCR's wider record of 500+ bridges inspected across India.
Does TCR test rebar couplers to IS 16172?
Yes. TCR Engineering is the first BIS-accredited commercial laboratory in India for IS 16172 rebar coupler testing, covering all diameters from 8 mm to 40 mm (BIS reference LRMD/LRS/OSL-7103506). Coupler and rebar testing supports Mumbai Metro, the Mumbai Coastal Road and the Mumbai-Ahmedabad High Speed Rail packages.
Is TCR approved for the Mumbai-Ahmedabad High Speed Rail project?
Yes. TCR Engineering is approved under NHSRCL VMAC No. 13 dated 23 October 2023 and has been engaged across all three civil packages since March 2024: MEIL-HCC (C1), Afcons (C2) and Larsen and Toubro (C3), covering HT strand, rebar couplers, concrete, soil and HSR-specification materials.
Does TCR collect construction samples from site?
Yes. TCR runs a free TCR-branded Sample Pickup Van across the Mumbai Metropolitan Region, lifting samples from client premises to the Mahape laboratory in Navi Mumbai at no charge, so site teams on residential, commercial and infrastructure projects do not carry the logistics burden.
